Product characteristics

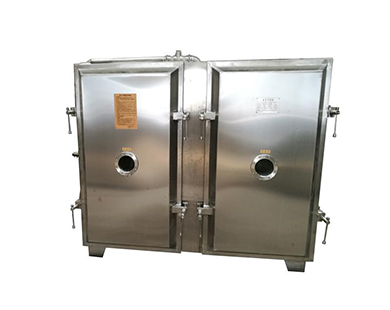

This product is developed and manufactured on the basis of conventional vacuum oven. The material is dried and sterilized by positive and negative double pressure system, so as to achieve sterilization effect that conventional vacuum oven can not handle.
The boiling point of the material can be reduced in vacuum, which effectively increases the driving force of the evaporator and saves energy.Through pressure sterilization, the heating medium has many choices, such as low pressure steam and hot water.It can be sterilized online.It can be cleaned online.

Optional configuration
Ultra-Low Vacuum System Cleaning on-line Sterilized Oil Barrel Vacuum (Patent) One Room Double Temperature (Patent) Flat Plate Dryer Solvent Recovery Tank

Model	FZGM-04	FZGM-08	FZGM-16	FZGM-20	FZGM-32	FZGM-36	FZGM-40	FZGM-48	FZGM-60
Size of in-box studio (width * depth * height) mm	460 x 780 * 690	460 x 780 * 1180	660 x 980 * 1180	660 x 980 * 1430	1280 x 980 * 1180	1280 x 980 * 1310	1280 x 980 * 1430	1300 x 1380 * 1180	1300 x 1380 * 1430
Box shape size (width * depth * height)mm	720 x 1000 * 1400	720 x 1000 * 1630	890 x 1200 * 1630	890 x 1200 * 1880	1510 x 1200 * 1630	1510 x 1200 * 1770	1510 x 1200 * 1890	1530 x 1600 * 1630	1530 x 1600 * 1880
Layer Number of Heating Plates	4	8	8	10	8	9	10	8	10
Plane spacing mm above layer	120	120	120	120	120	120	120	120	120
Drying plate size mm	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45	400 x 600 * 45
Number of drying dishes only	4	8	16	20	32	36	40	48	60
Batch production Kg	12	24	48	60	96	108	120	144	180
Plate size Mm	430 x 640 * 25	430 x 640 * 25	630 x 840 * 25	630 x 840 * 25	1250 x 840 x 25	1250 x 840 x 25	1250 x 840 x 25	1270 x 1240 x 25	1270 x 1240 x 25
Temperature in the box	Less than 100	Less than 100	Less than 100	Less than 100	Less than 100	Less than 100	Less than 100	Less than 100	Less than 100
Vacuum in box Mpa	Less than -0.098	Less than -0.098	Less than -0.098	Less than -0.098	Less than -0.098	Less than -0.098	Less than -0.098	Less than -0.098	Less than -0.098
Model of Water Distribution Circulating Vacuum Pump	2BV2060	2BV2061	2BV2070	2BV2070	2BV2071	2BV2071	2BV5110	2BV5111	2BV5121
Vacuum pump power KW	1.1	1.5	2.35	2.35	3.85	3.85	4	5.5	7.5
Water consumption l/min	2	2	2.5	2.5	4.2	4.2	7	8.5	10
Drying box weight Kg	1000	1400	1600	2000	2500	3000	3500	3800	4500
The above data are designed for our company and can be produced according to customer's requirements. Please contact us at 025-85718786/025-85769880.
